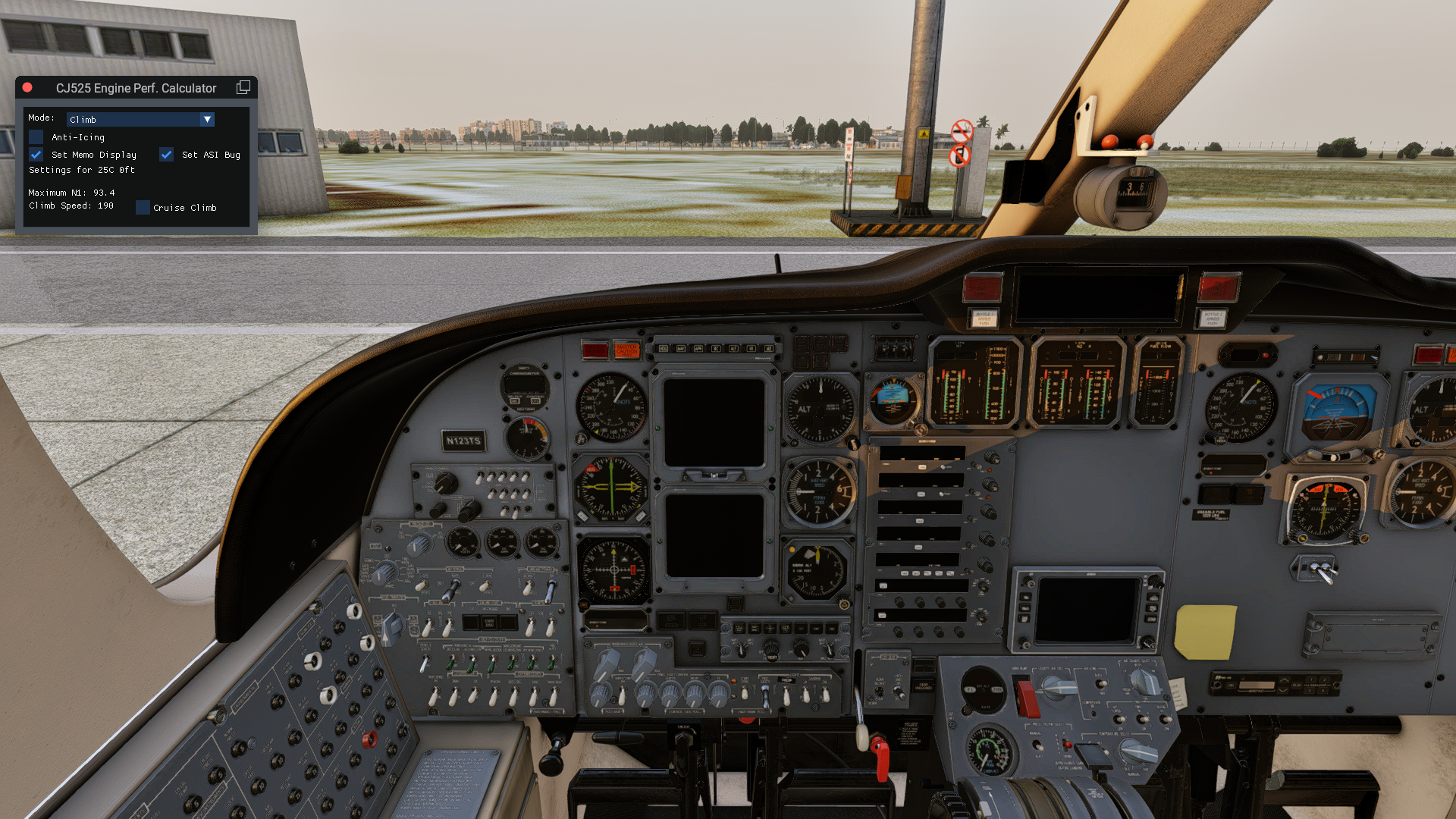

Matchstick Posted 19 hours ago Report Posted 19 hours ago CJ525 N1 Calculator View File About This File About N1 Calculator This is a simple Fly With LUA script to read the N1 Alt/Temp data for the Torquesim CJ525 from .csv files and display the current max N1 value in a window for the current conditions and flight mode. It also reads and displays the recommended Climb Speeds for either Standard or Cruise climb when Climb in mode. Additionally there are options to display the N1 value on the Memo display and the Climb speed using the ASI bug for a more natural in-cockpit experience. The latest version of the code will always be available from it's Github Repository under "Releases" Prerequisites FlyWithLua plugin must be installed and working correctly - plugin was developed using FWL v2.8.10 on Windows 11. (The plugin should be be compatible with the Mac and Linux versions of the CJ525 and FWL but I'm unable to test and confirm that myself.) Installing N1 Calculator Extract the contents of the Zip file into the \plugins\FlyWithLua\Scripts folder including the CJ525_data folder (these are the .csv data files read by the plugin) Using N1 Calculator The plugin window should be automatically displayed when you start a flight in the CJ525. You can Change the Flight mode between Take-Off, Climb, Cruise and Go-Around using the List Box at the top and use the checkboxes to specify if engine Anti-Ice is on or off and whether to send the data to the In-cockpit Memo. When in Climb mode the window also shows the recommended Climb speed for the Altitude as well as a checkboxes to specify whether to send the Climb Speed to the ASI bug and select Cruise Climb. Note - when the Set Memo Display is set this prevents manual setting of the Memo fields so the checkbox should be disabled if the Memo are to be used for anything else. Similarly when the Set ASI Bug is set and the calculator is in climb mode the ASI Bug cannot be manually set. (it can be manually set in other modes even if the checkbox was set during Climb mode) Submitter Matchstick Submitted 02/10/2025 Category Plugins and Utilities 1 Quote
