WeisAir_2025

Hey there, I am about to configure my home cockpit for the lovely 737 classic plus. Maybe I am completely blind but even after a lot of requests to google, this forum and other friends I cannot find THE complete list of commands for the latest version of the 737. The documentation lists these: ixeg/733/autopilot/TOGA ixeg/733/autopilot/AP_disengage ixeg/733/autopilot/AT_switch_cycle ixeg/733/autopilot/AT_speed_toggle ixeg/733/autopilot/AP_A_cmd_toggle ixeg/733/autopilot/AP_B_cmd_toggle ixeg/733/autopilot/FD_pilot_toggle ixeg/733/autopilot/FD_copilot_toggle ixeg/733/autopilot/N1_mode_toggle ixeg/733/autopilot/SPEED_mode_toggle ixeg/733/autopilot/CO_toggle ixeg/733/autopilot/LVLCHG_mode_toggle ixeg/733/autopilot/VNAV_mode_toggle ixeg/733/autopilot/HDG_mode_toggle ixeg/733/autopilot/LNAV_mode_toggle ixeg/733/autopilot/VORLOC_mode_toggle ixeg/733/autopilot/APP_mode_toggle ixeg/733/autopilot/ALTHLD_mode_toggle ixeg/733/autopilot/VS_mode_toggle ixeg/733/autopilot/AP_A_cws_toggle ixeg/733/autopilot/AP_B_cws_toggle ixeg/733/autopilot/HDG_bug_inc_90 ixeg/733/autopilot/HDG_bug_dec_90 ixeg/733/bleedair/bleedair_ovht_test_act ixeg/733/views/view_default ixeg/733/views/view_test ixeg/733/views/view_save ixeg/733/views/view_cycle ixeg/733/views/view_cycle_back ixeg/733/views/view_ ixeg/733/firewarning/fire_cargo_test_act ixeg/733/flaps/flaps_0 ixeg/733/flaps/flaps_1 ixeg/733/flaps/flaps_5 ixeg/733/flaps/flaps_10 ixeg/733/flaps/flaps_15 ixeg/733/flaps/flaps_25 ixeg/733/flaps/flaps_30 ixeg/733/flaps/flaps_40 ixeg/733/FMC/cdu1_clr ixeg/733/FMC/cdu2_clr ixeg/733/misc/pilot_check_list_bug ixeg/733/misc/copilot_check_list_bug ixeg/733/misc/egpws_test_act ixeg/733/misc/gear_release_right_act ixeg/733/misc/gear_release_left_act ixeg/733/misc/gear_release_nose_act ixeg/733/xpdr/xpdr_ident_act ixeg/733/xpdr/xpdr_test_act But when I look into the XP button assigment, I see plenty of others which I actually need (see screenshot below). Of course I could type them down reading from the screen but I'd like to have a list of these. Unfortunately DataRefTool does not help me to generate this list because it cannot detect all of them (mainly just these that you see in the listing above) So, could you please point me to the place where I can find the complete list or could you please provide it here? Best, Stephan

You are welcome and thank you for taking action on that! I love that bird :-) . Would be great a fix could be provided somewhen. Have a great week! best, Stephan

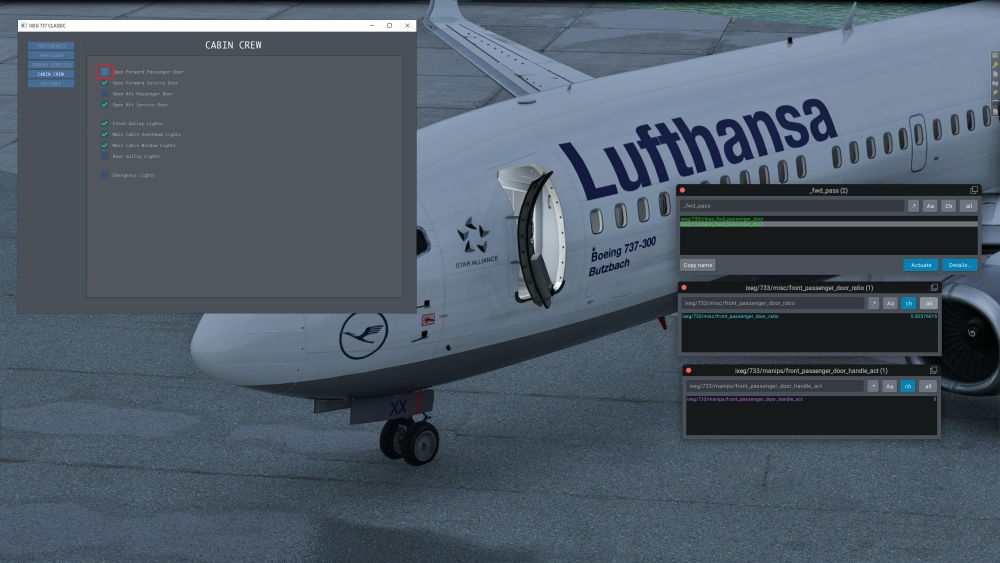

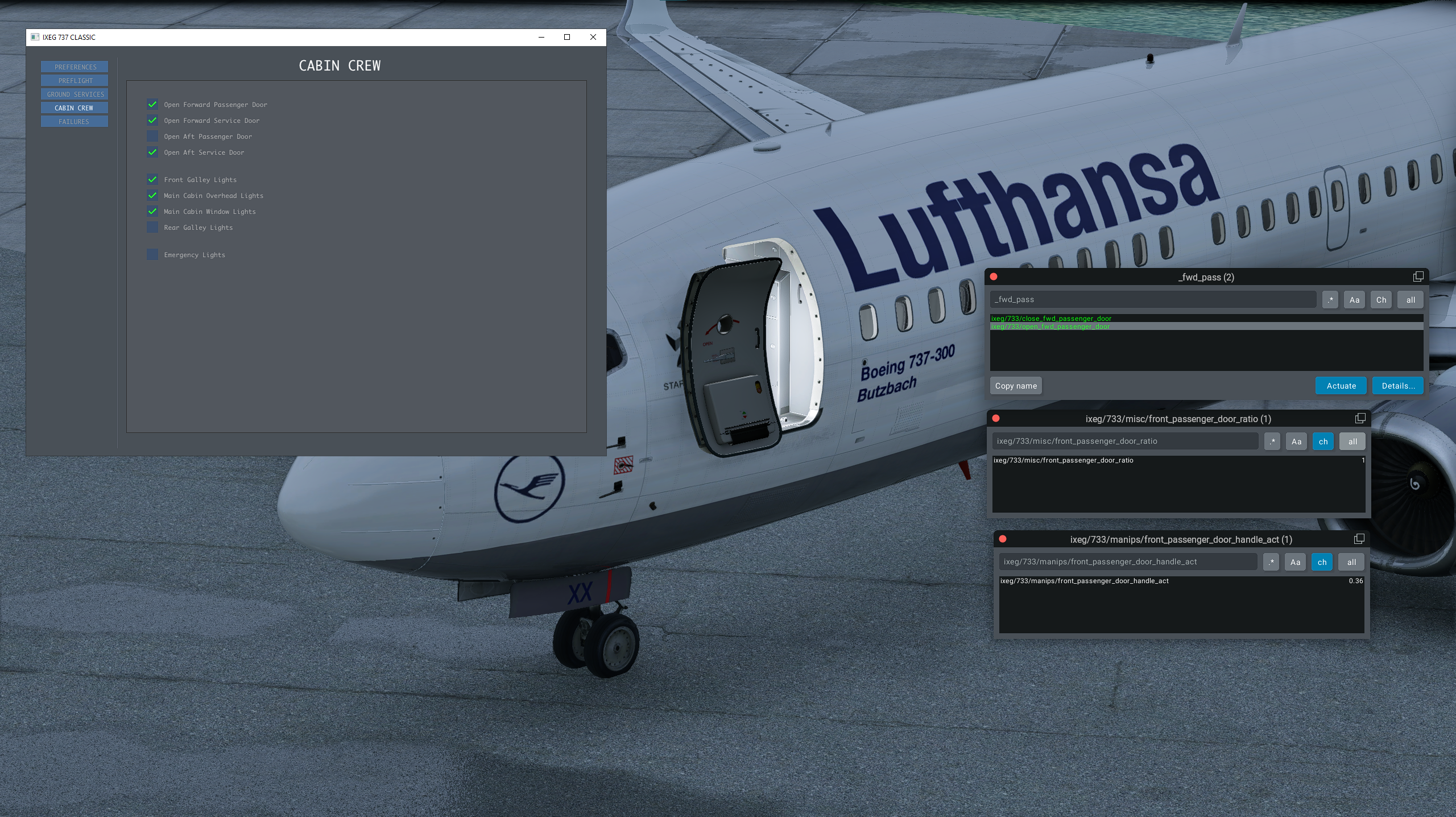

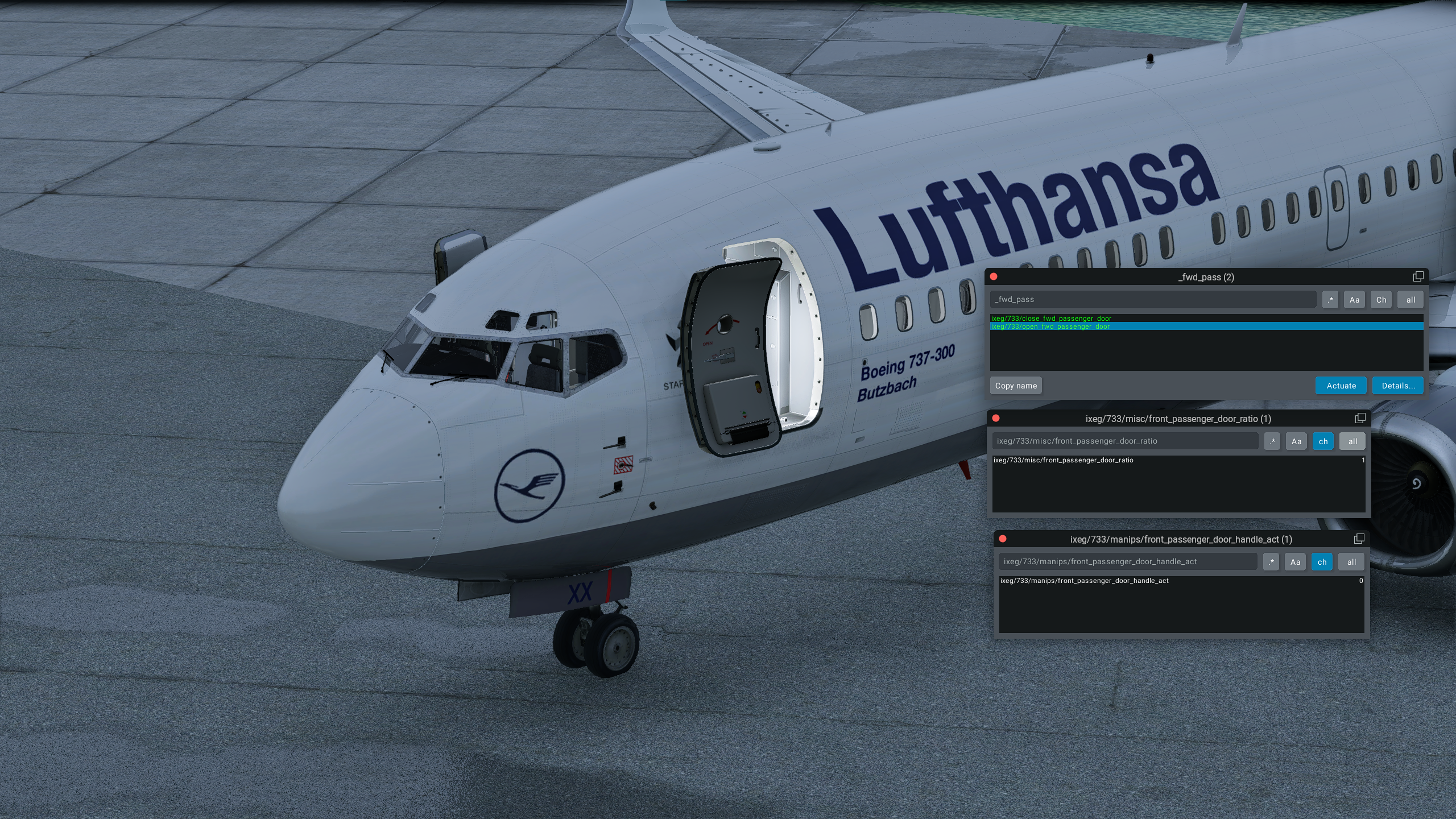

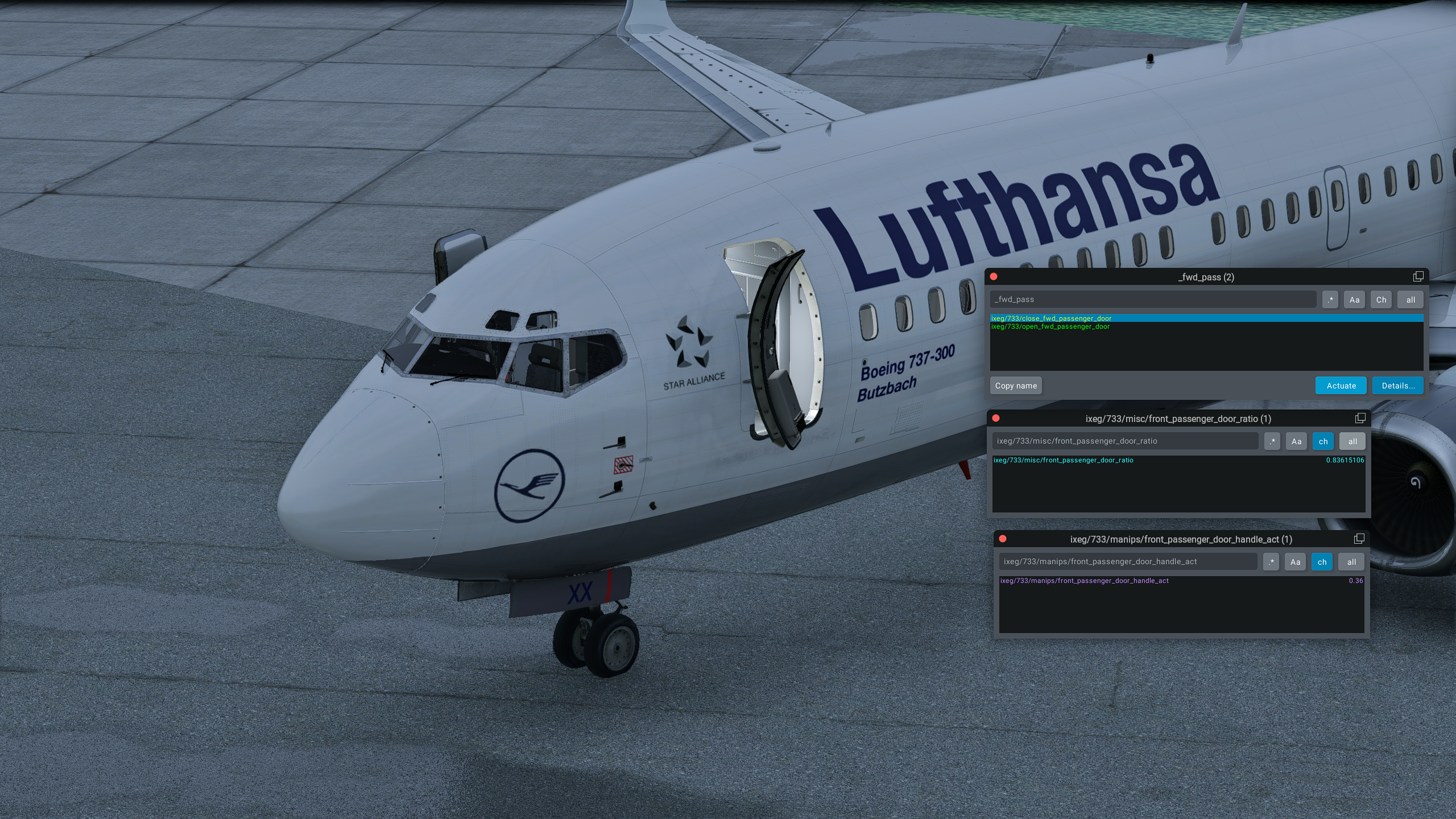

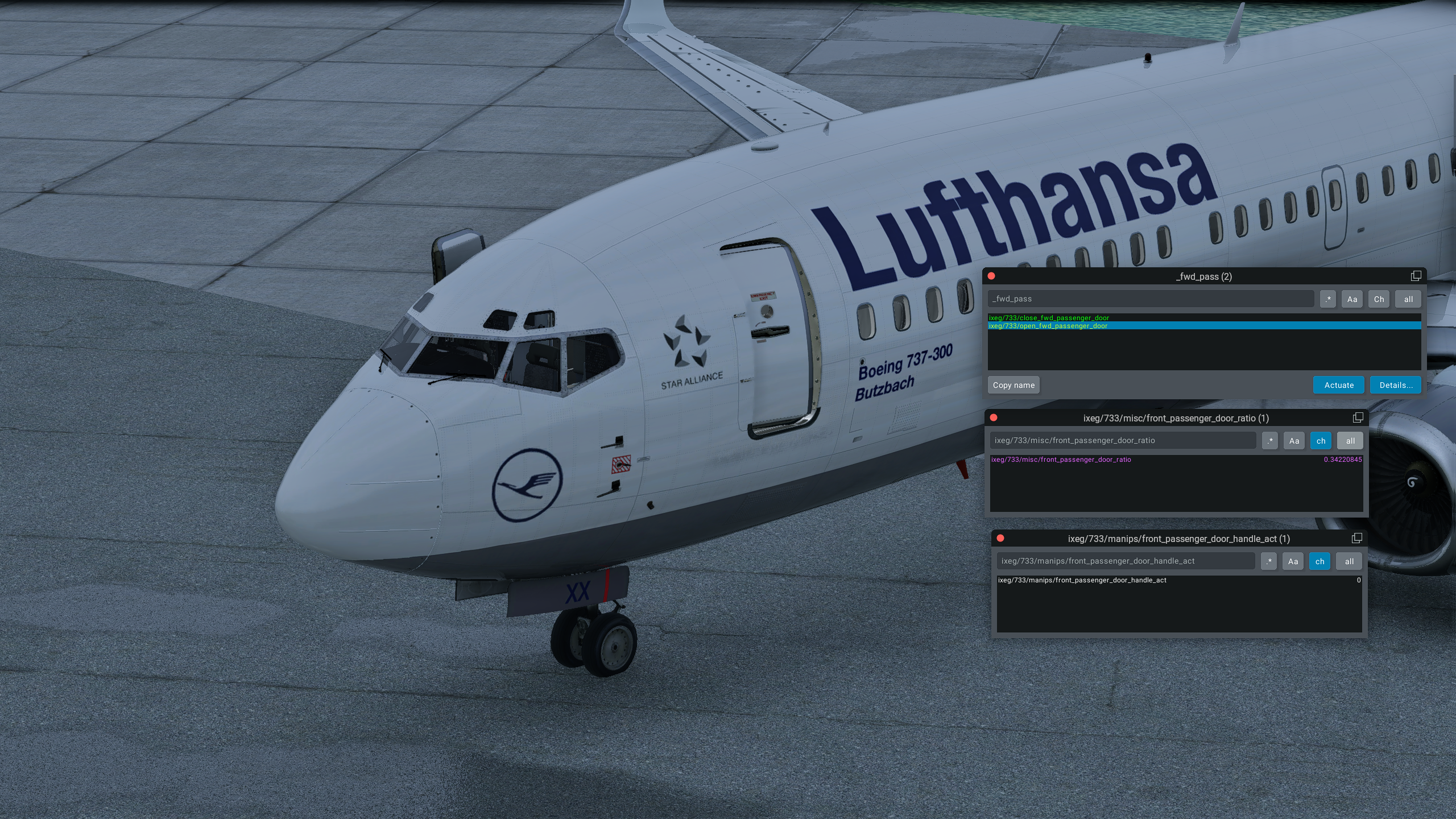

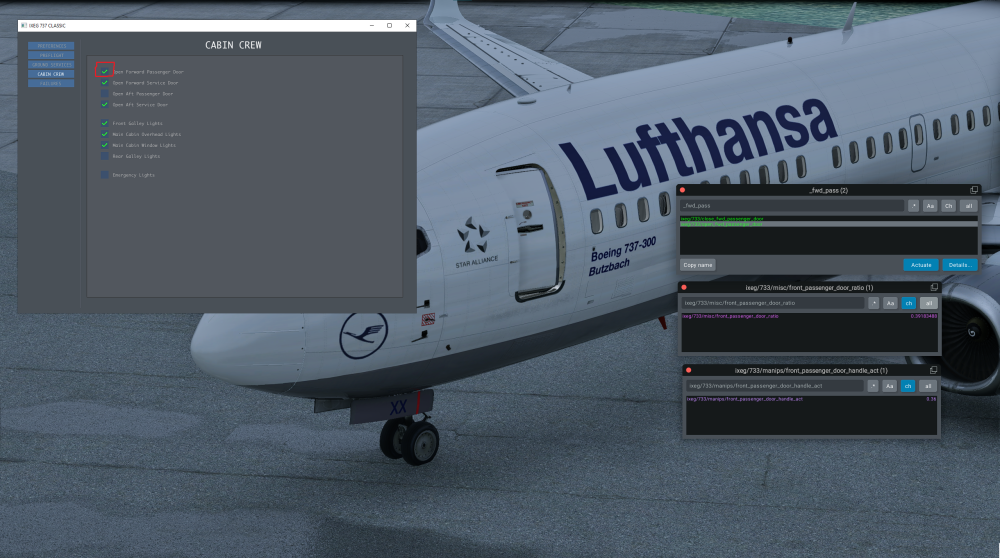

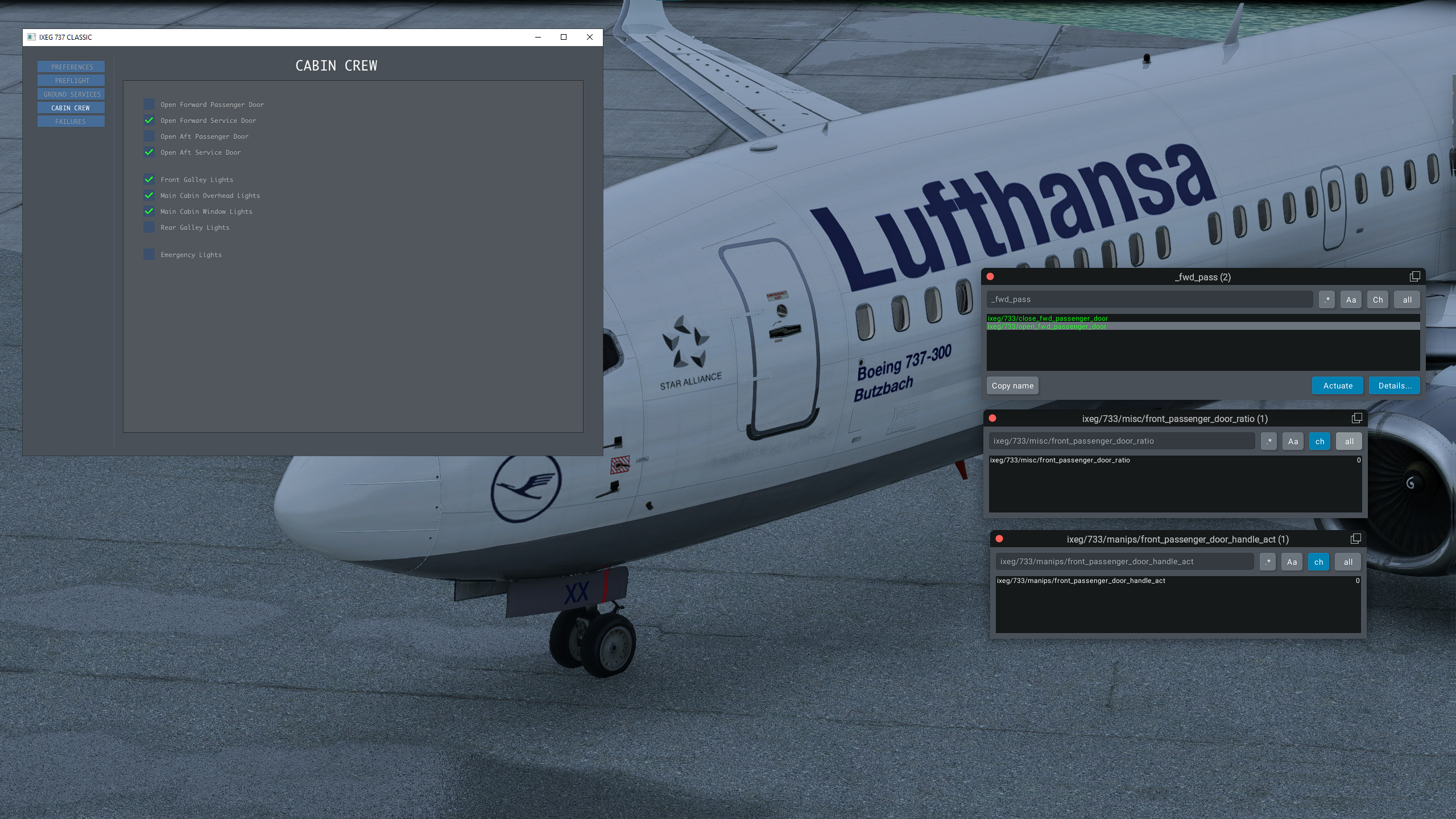

Hi there, I assume I found a bug in the built-in commands to close the aircraft doors. Situation: I want to open/close the passenger doors by using commands rather than the built in "Cabin Crew"-Dialog. If I use the "Cabin Crew" dialog by clicking "Open Forward Passenger Door" both opening and closing works as intended When I use the built-in IXEG commands to do the same process I can open the door completely but not closing it completely (see screenshots) These are the commands I use: ixeg/733/open_fwd_passenger_door ixeg/733/close_fwd_passenger_door Some observations: I see that there are 2 datarefs involved or at least related. I use DataRefTool to analyze the dataref states and commands door movment ratio => ixeg/733/misc/front_passenger_door_ratio (0.0 means "door closed", 1.0 mans "door opened") (i assume) door handle actuator =>ixeg/733/manips/front_passenger_door_handle_act (I assume 0.0 means "door closed", 1.0 mans "door opened" here as well) as expected, In both ways of closing the door (via command and via clicking the checkbox in the IXEG menu) the dataref ixeg/733/misc/front_passenger_door_ratio changes according to the door position I notice that ixeg/733/manips/front_passenger_door_handle_act is only changed if the "Cabin Crew" Dialog is used but not if I use the close command. When I close the door via the command ixeg/733/close_fwd_passenger_door the closing process stops at ixeg/733/misc/front_passenger_door_ratio == 0.36 (I expected 0.0 here) the behaviour is the same with all other doors I tested. Documentation: I tried to document both the aircraft visuals + the commands / datarefs / menu state with screenshots. That way you see how the datarefs change during the tests. Screenshots 01-04 cover the open/close cycle via the checkbox click, screenshots 05-08 cover the copen/close cycle via the IXEG commands. Please find them attached: 01 - screenshot taken some seconds after clicking the "Open Forward Passenger Door" checkbox in the IXEG cabin crew menu 02 - screenshot taken after the door has opened completely 03 - screenshot taken some seconds after clicking the "Open Forward Passenger Door" checkbox again in the IXEG cabin crew menu to close the door 04 - screenshot taken after the door has closed completely 05 - screenshot taken some seconds after actuating the ixeg/733/open_fwd_passenger_door command from within DataRefTool 06 - screenshot taken after the door has opened completely 07 - screenshot taken some seconds after actuating the ixeg/733/close_fwd_passenger_door command from within DataRefTool 08 - screenshot taken after closing procedued stopped wth the door still open a bit Conditions: The aircraft is in go-around state at this test I am running on the latest IXEG 737-300 on XP 12.2.0 RC1 Any help / recommondation would be awesome! Best, Stephan
